Capabilities
From one-off prototypes to full production runs.

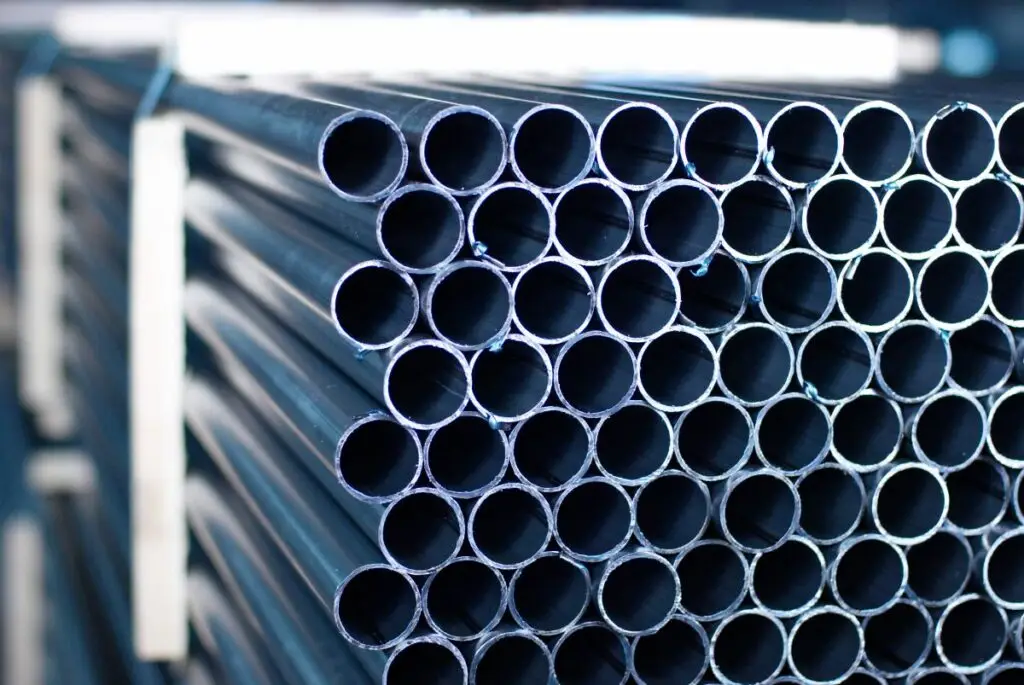

3mm wall. Five tube sizes tooled, from 16mm to 50mm.

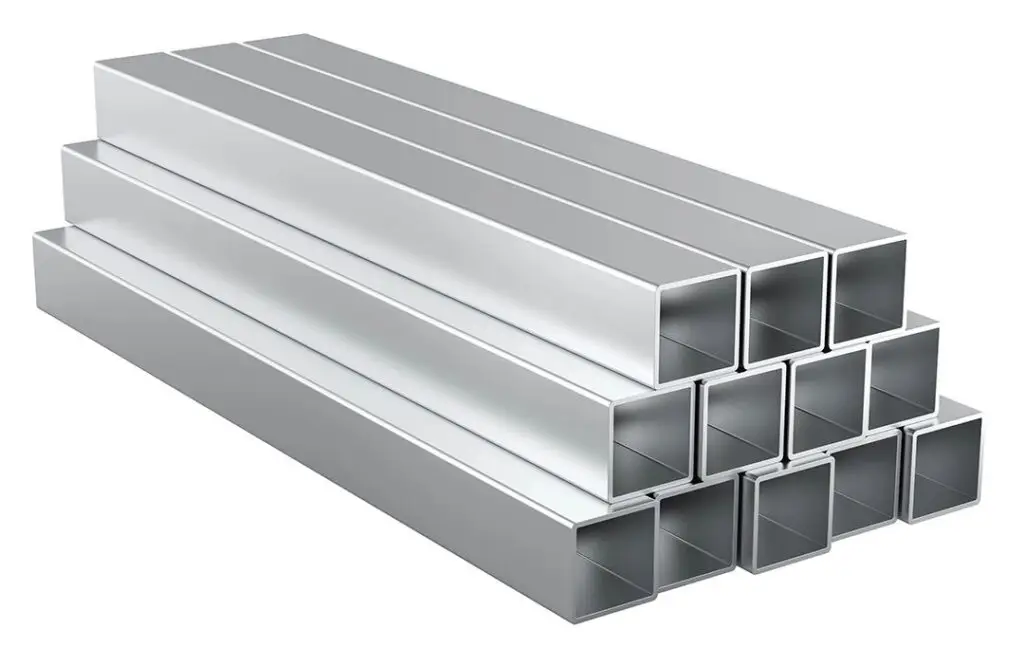

3mm wall. Two sizes tooled: 25 × 25mm and 40 × 40mm.
Our standard tooling for aluminium tube, 3mm wall. [Confirm: bend radius is measured to the tube centreline, and whether the same tooling is used for stainless steel.]
| Tube diameter | Bend radius |
|---|---|
| 16mm | R54 |
| 25mm | R63.5, R80 |
| 32mm | R74, R95 |
| 38mm | R95, R135 |
| 50mm | R135 |
| Tube size | Bend radius |
|---|---|
| 25 × 25mm | R75 |
| 40 × 40mm | R120 |
Need a size or radius that is not listed? Ask us.
Every part is programmed and previewed in 3D before bending starts, so the first part is checked on screen and the hundredth matches it.

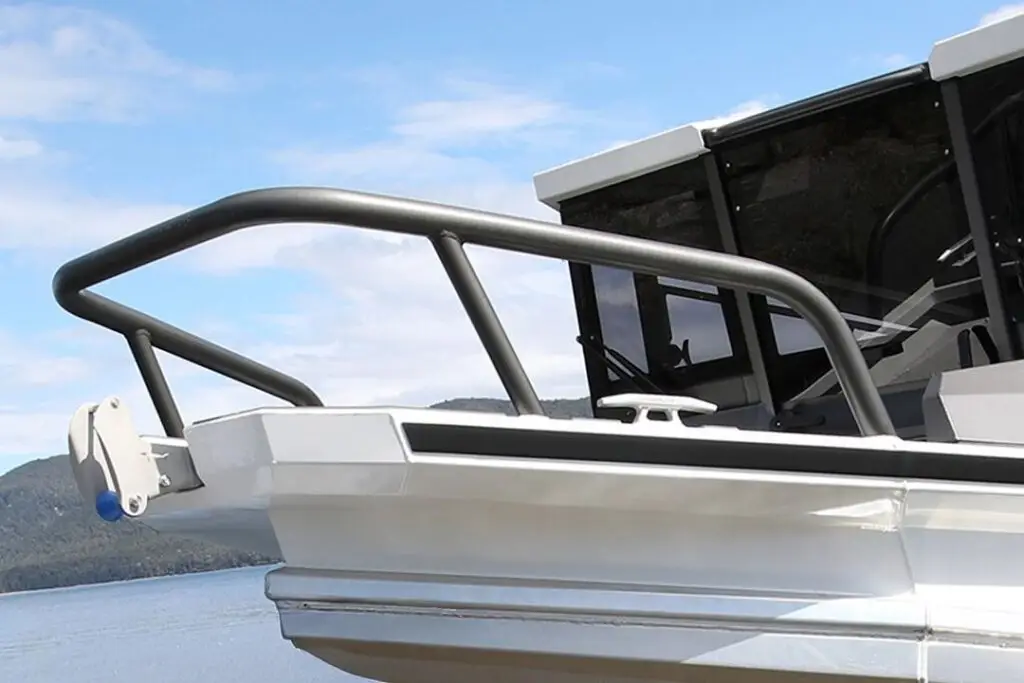

Bow rails and boat rails, bent to your drawings.

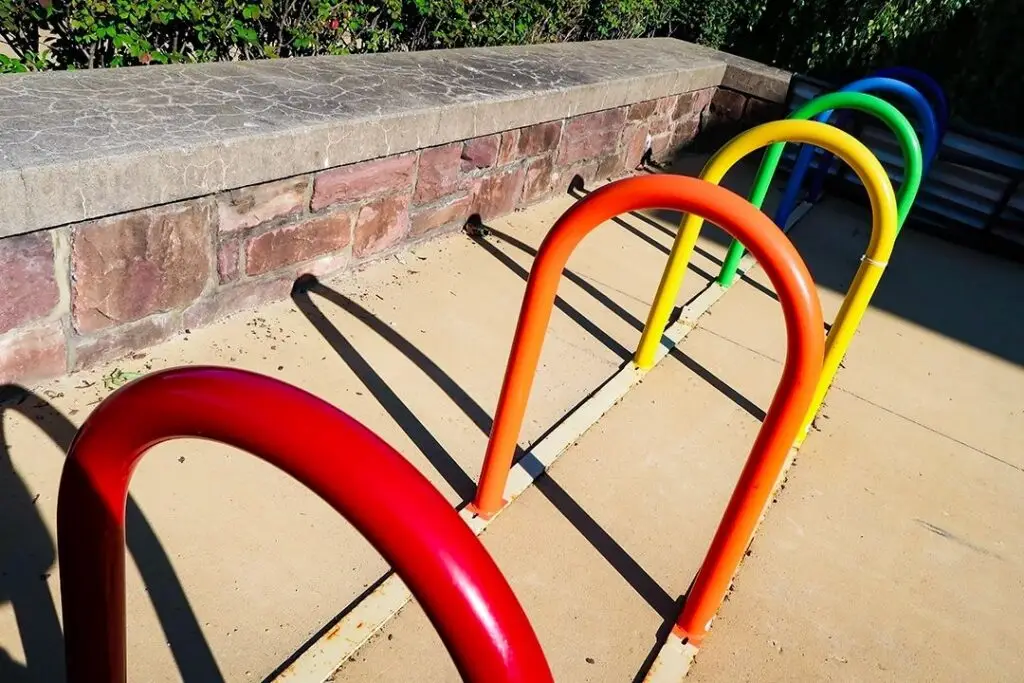

Bike racks and outdoor fittings, bent to your drawings.

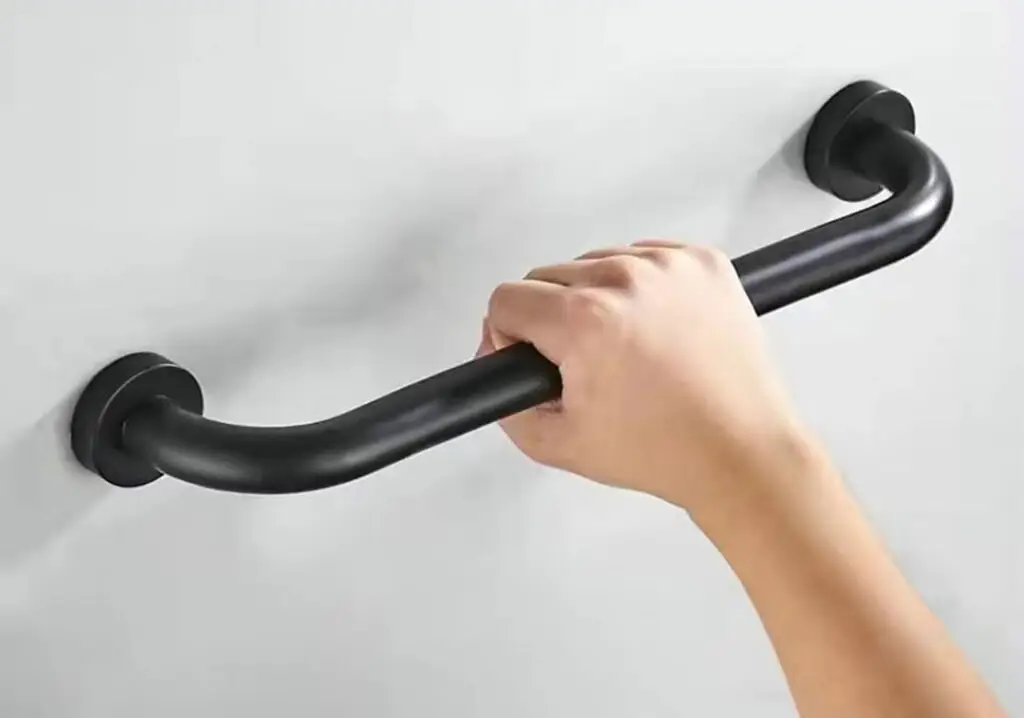

Handrails, grab rails and frames, bent to your drawings.
We will check the tube, material and bends, then come back to you with a quote.
